x264 benchmarks (individual flags & motion estimation)

Published: 2009-01-10
As discussed before, finding the right set of x264 flags is a rather complex task. What do these flag mean? What's their effect on encoding time? On file size? On quality? All these are valid questions and the purpose of this article is to experiment and try to answer them.

For this purpose, I will encode the same video with different flag combinations, measure encoding time and file size, and stream it on my PS3 using mediatomb. This is also a way to check that the PS3 supports the encoding flags I'm going to try.

1) A quick look at the test file

I decided to pick a low resolution, high bitrate MPEG video. This way, artifacts will be much more visible when the video is displayed on a large screen, and it will also be interesting to see how much x264 can compress this any further.

Here's what mediainfo reports:
ubuntu% mediainfo video.mpg
General
Complete name : video.mpg
Format : MPEG-PS
File size : 41.8 MiB
Duration : 2mn 59s
Overall bit rate : 1 954 Kbps

Video
ID : 224 (0xE0)
Format : MPEG Video
Format version : Version 1
Format settings, Matrix : Default
Duration : 2mn 59s
Bit rate mode : Constant
Bit rate : 1 594 Kbps
Nominal bit rate : 1 700 Kbps
Width : 352 pixels
Height : 288 pixels
Display aspect ratio : 4/3
Frame rate : 25.000 fps
Scan type : Progressive
Bits/(Pixel*Frame) : 0.629

Audio
ID : 192 (0xC0)
Format : MPEG Audio
Format version : Version 1
Format profile : Layer 2
Duration : 2mn 59s
Bit rate mode : Constant
Bit rate : 224 Kbps
Channel(s) : 2 channels
Sampling rate : 44.1 KHz
Resolution : 16 bits
Video delay : 280ms
2) Test "methodology"

Although I will also encode audio to AAC, I will only be benchmarking video: encoding times and file sizes discussed below are for the video stream only.

Regarding video encoding, I've opted for Constant Rate Factor encoding (--crf flag), with the same quality factor on all tests. Indeed, I'm not looking to achieve "the best encoding" (whatever that is): instead, I'm really trying to highlight the relative impact of a given flag on encoding.

All tests are performed on Ubuntu 8.04, running on an 1.83GHz Intel Core 2 CPU (T5600 @ 1.83GHz). For the record, here are the actual commands, based on ffmpeg SVN-r16452 and MP4Box 0.4.4:

% ffmpeg -i video.mpg -vn -acodec libfaac -aq 255 -ar 44100 -ac 2 -async 1 video.aac
% time ffmpeg -i video.mpg -f rawvideo - | x264 $X264_FLAGS -o video.264 - 352x288
% MP4Box -new -add video.aac -add video.264 video.mp4
3) Finding out the default values

The first problem is to find out what default values x264 is using. It would not make a lot of sense to start tweaking if we don't know what the starting point it. Fortunately, mediainfo is able to dump encoding flags, so let's do a quick vanilla run (X264_FLAGS="--crf 21"):

ubuntu% mediainfo video.mp4
output removed
Format profile : Main@L1.3
output removed
Encoding settings : cabac=1 / ref=1 / deblock=1:0:0 / analyse=0x1:0x111 / me=hex / subme=6 / psy_rd=1.0:0.0 / mixed_ref=0 / me_range=16 / chroma_me=1 / trellis=0 / 8x8dct=0 / cqm=0 / deadzone=21,11 / chroma_qp_offset=-2 / threads=1 / nr=0 / decimate=1 / mbaff=0 / bframes=0 / keyint=250 / keyint_min=25 / scenecut=40 / rc=crf / crf=21.0 / qcomp=0.60 / qpmin=10 / qpmax=51 / qpstep=4 / ip_ratio=1.40 / aq=1:1.00

OK, so:
4) Testing individual flags

These are the tests I'm going to run to try to find out what each additional flags costs and brings:
  1. --crf 21 : default values

  2. --crf 21 --bframes 16 : enable B frames (up to 16 consecutive frames)

  3. --crf 21 --bframes 16 --b-pyramid : allow B frames to be referenced by other frames

  4. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs : allow up to 8 frames to be referenced by P frames & allow references for partitions (instead of macroblocks)

  5. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb : allow weights to be set on referenced frames

  6. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all : enable all partitions

  7. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 : enable 8x8 partitions in I frames

  8. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 --no-fast-pskip : examine P frames more closely

  9. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 --no-fast-pskip --subme 7 : work harder on subpixel motion estimation

  10. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 --no-fast-pskip --subme 8 : work even harder on subpixel motion estimation

  11. --crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 --direct auto --no-fast-pskip --subme 9 : work extremely hard on subpixel motion estimation :)
5) Results on individual flags

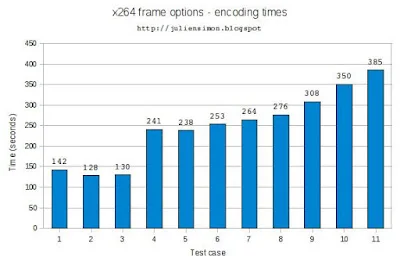

Here are the results on the encoding time (click for a larger version):

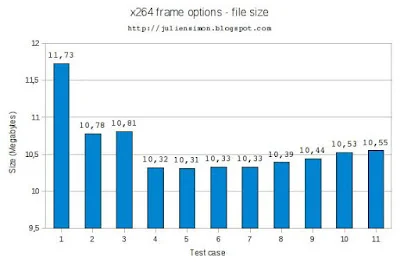

Technical performance metrics chartHere are the results on the size of the output file (click for a larger version):

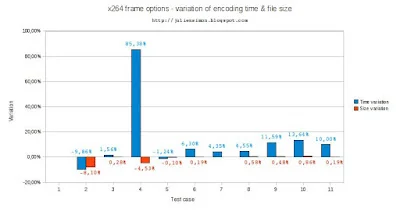

Technical performance metrics chartHere are the sequential variations, i.e. from one test case to the next (click for a larger version):

Technical performance metrics chart
6) Testing motion estimation

Here are the tests I'm going to run to compare different motion estimation methods, with both default and advanced subpixel motion estimation.

All these tests also include '
--crf 21 --bframes 16 --b-pyramid --ref 8 --mixed-refs --weightb --partitions all --8x8dct --direct-8x8 1 --no-fast-pskip'.
  1. --me hex --subme 6 : hexagonal search, default subpixel processing

  2. --me hex --subme 9 : hexagonal search, maximum subpixel processing

  3. --me umh --subme 6 : uneven multi-hexagon search, default subpixel processing

  4. --me umh --subme 9 : uneven multi-hexagon search, maximum subpixel processing

  5. --me esa --subme 6 : exhaustive search, default subpixel processing

  6. --me esa --subme 9 : exhaustive search, maximum subpixel processing

  7. --me tesa --subme 6 : hadamard exhaustive search, default subpixel processing

  8. --me tesa --subme 9 : hadamard exhaustive search, maximum subpixel processing
7) Results on motion estimation

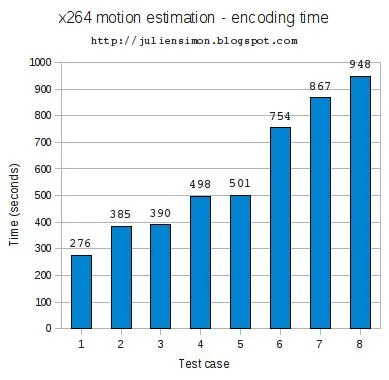

Here are the results on the encoding time (click for a larger version):

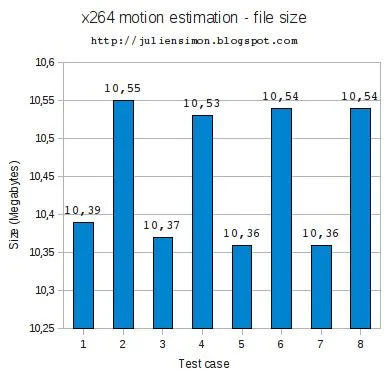

Technical performance metrics chartHere are the results on the size of the output file (click for a larger version):

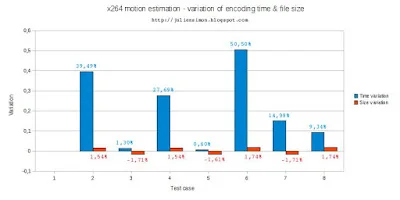

Technical performance metrics chartHere are the sequential variations, i.e. from one test case to the next (click for a larger version):

Technical performance metrics chart8) Conclusion (?)

Hmm, some really interesting figures in there: I need to think about it, so let's call it day for now :)

I'll come back to these numbers very soon and I'll try to to explain / guess what they mean. All comments welcome, of course!
